Description

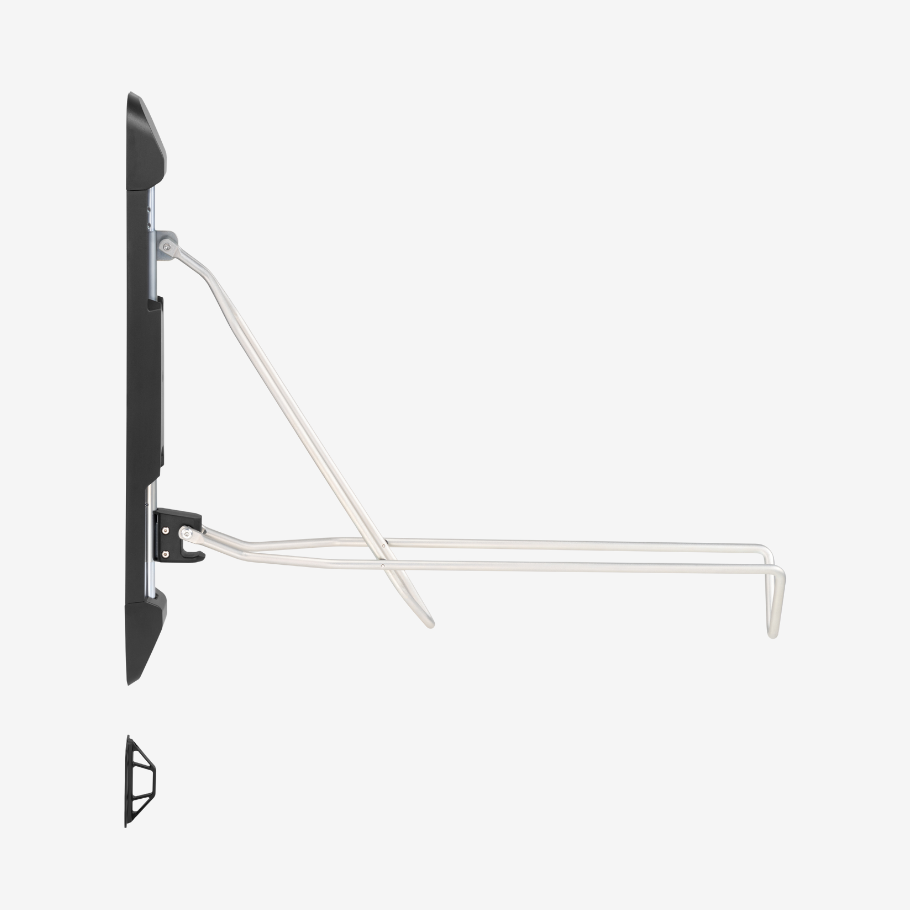

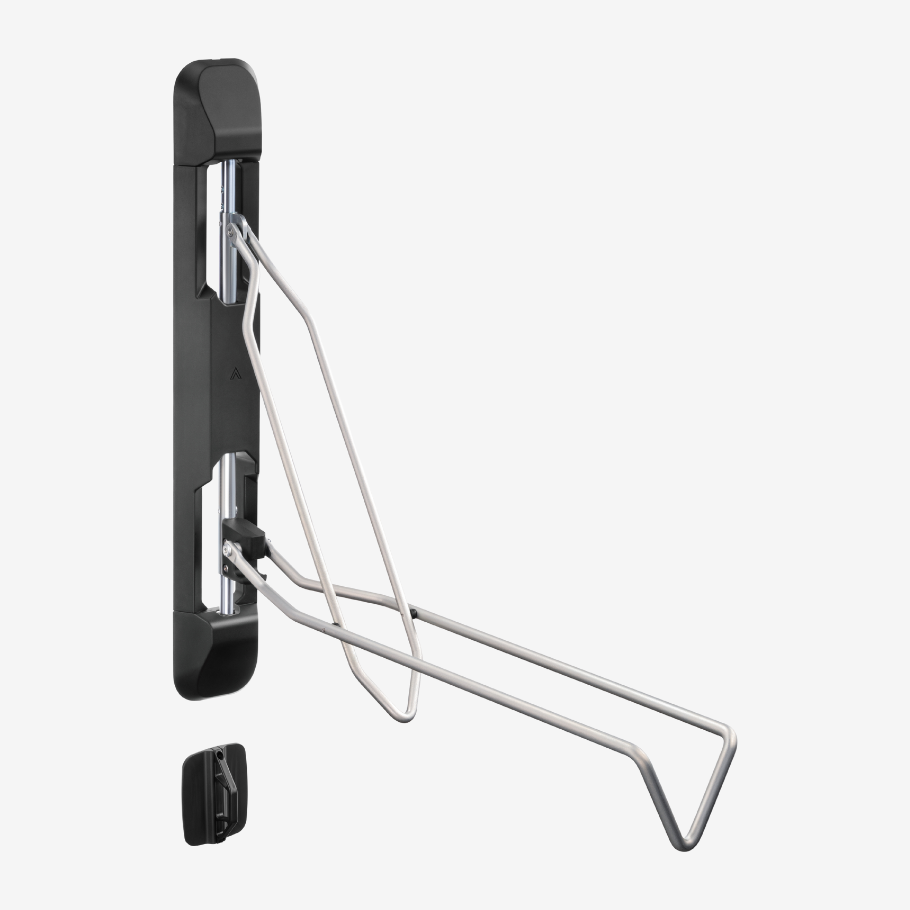

GZR Wall Stand 01 – Space-Saving Bike Wall Mount

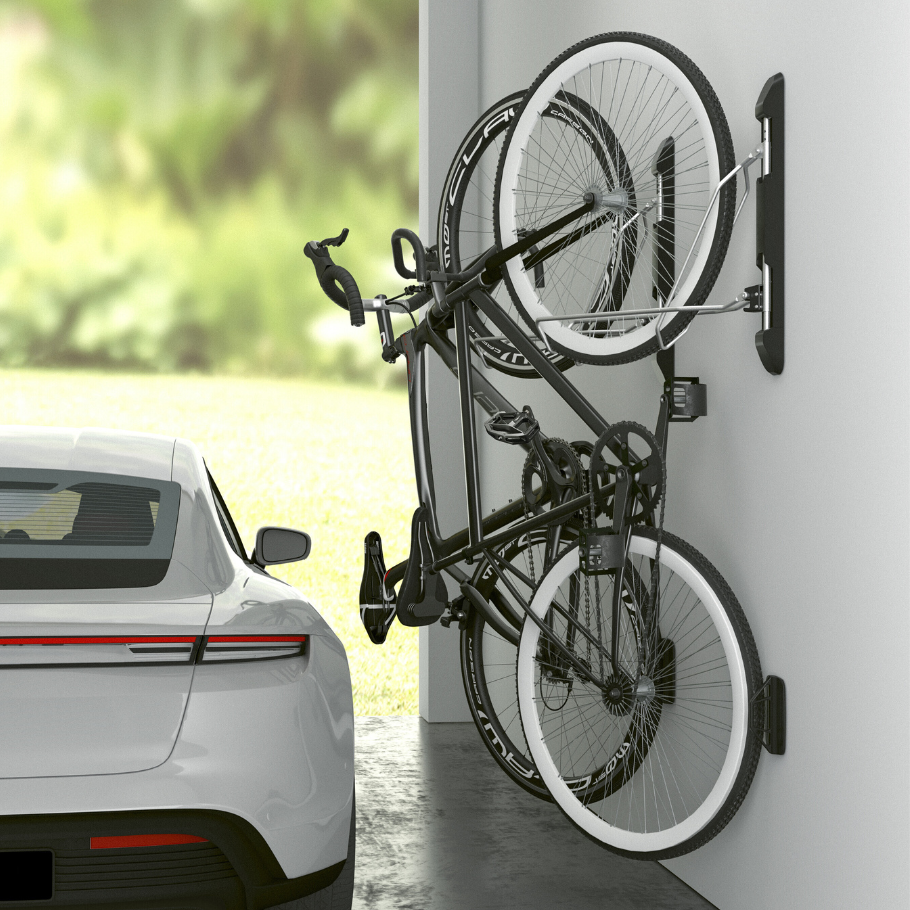

The GZR Wall Stand 01 is a clever bike wall mount designed to save space, especially when storing multiple bikes side by side. Thanks to its swiveling mechanism, you can “flip through” your bikes like pages in a catalog. Storing your bike vertically against the wall keeps it out of the way, making it easier to walk past. This stand is an excellent addition to a garage, bike room, or apartment building’s bike storage area. Please note: if your bike has a front mudguard, ensure it does not get pinched in the holder.

The Wall Stand 01 in size M fits bikes with front tire widths from 2.1” to 2.8”. With a maximum load capacity of 35 kg, it can easily support most e-bikes. The recommended installation height is 170–180 cm from the top of the rack to the ground. The goal is for the rear tire to hover just above the ground, so you don’t have to lift the bike fully—just tip it back and roll the front tire into the rack. The stand may not be suitable for bikes with large front mudguards.

How to use:

1. Open the rack from the wall (if not already open)

2. Tilt the bike upright, resting on the rear tire

3. Roll the front tire into the stand

4. Swivel the bike towards the wall to free up floor space

Features:

• Material: Steel, plastic

• Dimensions: 100 x 638 x 583 mm

• Max load capacity: 35 kg

• Swivel range: -60° ~ +60°

• Fits front tire width: 2.1”–2.8” (57–70 mm)

• Suitable tire diameter: 20”–29”

Package includes:

• Wall Stand 01

• Rear tire rest

• 4 x lag screws (5 x 55 mm) with wall plugs for concrete (10 x 40 mm)

• 2 x screws and wall plugs (6 x 35 mm)
